Hatmed G1 Series

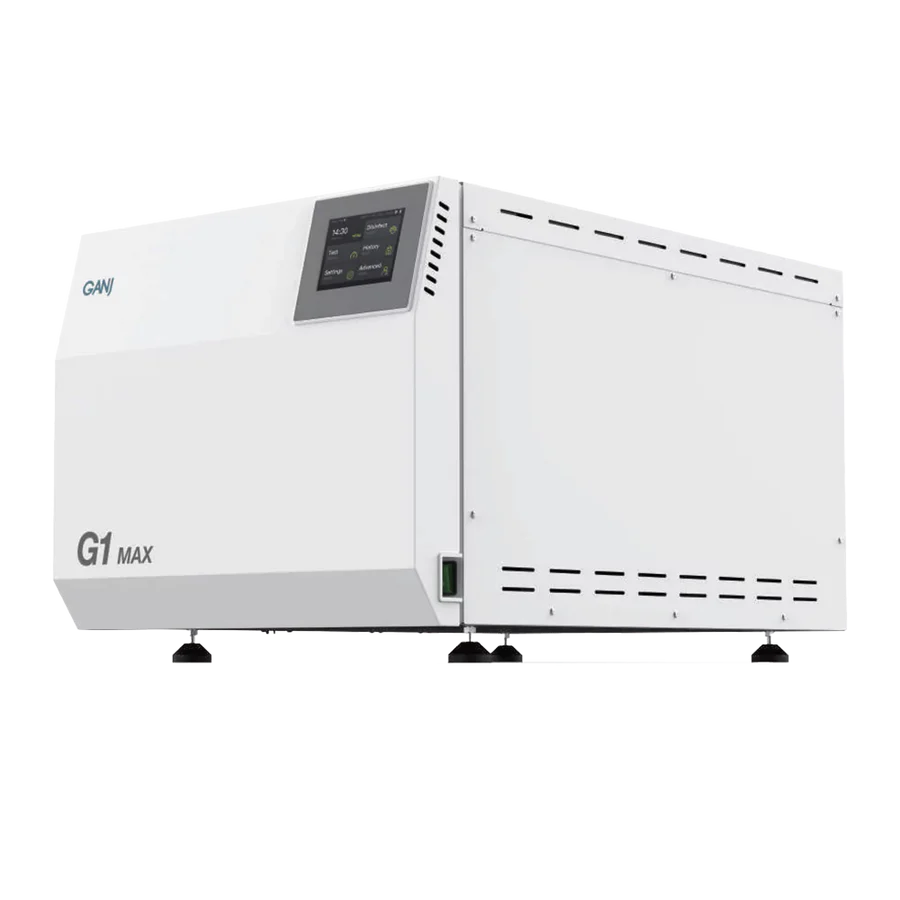

G1 Series - G1 Max 46L

46 Litre Dry Vacuum Large Autoclave
B & S Class

SKU: HAMG46TPD

MSRP: $13,999.00 ex GST



The G1 Series G1 Max 46L is a high-capacity Class B autoclave built for high-volume sterilisation in busy clinical environments. It delivers consistent results and efficient drying across large instrument loads, making it well suited to medical, dental, veterinary and podiatry practices. A German-made vacuum pump reaches -0.92 bar for thorough air removal, and the 46-litre chamber holds up to 16.7 kg of metal instruments.

Fastest B Class Cycle Time: 29 minutes
Fastest S Class Cycle Time: 20 minutes



Features

  • 3-Time Pre-Vacuum System - Advanced air removal for superior steam penetration and consistent sterilisation.
  • German Vacuum Pump (-0.92 bar) - High-performance vacuum system supported by premium European components for reliable operation.
  • Patented Steam Generator - Rapid saturated steam production for efficient sterilisation and validated Helix & B&D performance.
  • Optimal Drying System - Advanced condensation system ensures effective drying for wrapped and porous loads.
  • Intelligent Load Detection - Automatically adjusts time, water, and energy usage for efficiency and sustainability.
  • Large Data Storage (30,000 Cycles) - Stores sterilisation records with easy on-screen access and USB export capability.
  • Advanced Safety System - Includes automatic door lock, emergency door release, dual safety valves, and overheat protection.


What's in the Box

  • G1 Series - G1 Max 46L - HAMG46TPD
  • 1x Power Cable
  • 1x U Shaped Steel Wire Basket
  • 1x Air filter
  • 1x Tray clamp


Specifications

Type
G1 Series - G1 Max 46L - HAMG46TPD
Volume
46 Litres
Device Dimensions
915mm(D) x 590mm(W) x 515mm(H)
Chamber Dimensions
610mm (D) x 320mm (W)
Minimum Benchtop Dimensions
820mm(D) x 590mm(W)
Weight
99Kg
Power
20A (4600w) Australia power outlet
Display
Colour 5.6" Smart-Touch Display
Data Interface
USB/RS232
Printer
External Printer (Optional)
External Case Material
Carbon Metal White Powder Coat Cover
Water Tank
External water tank
Door Opening
Automatic Safety Door
Vacuum Level
-0.92bar


Program Table

Program
Temp (°C)
Fastest Cycle Time (Min)
Typical Load
Gen 121
121
101
Textile load up to 5.4 kg or thermo-unstable instruments up to 20 kg.
Gen 134
134
46
Mixed load. Hollow instruments etc.
134+
134
51
Mixed load. Hollow instruments etc.
Quick S
134
20
Solid instruments, simple geared or hollow instruments.
Quick B
134
29
Wrapped instruments up to 12 kg or 20 kg unwrapped solid instruments.


Shipping Info

Shipping Dimensions: 1050mm(D) x 720mm(W) x 720mm(H)
Shipping Weight: 120Kg


Warranty

2 Years from the date of the invoice or 2000 cycles, whichever comes first. The customer must have a 12 month maintenance performed by an accredited service agent.


Downloads

Ganj HG46TPD Q82BA G1 Max Brochure

Ganj HG46TPD Q82BA G1 Max User Manual



About the Product

The Hatmed G1 Series - G1 Max 46L is a high-capacity dry vacuum autoclave designed for reliable, high-volume sterilisation in demanding clinical environments. Ideal for medical, dental, veterinary, and podiatry practices, it combines advanced sterilisation technology with intuitive operation to support safe, efficient instrument processing at scale.



Product Details

Fast, Efficient Sterilisation
The G1 Series - G1 Max 46L uses advanced pre-vacuum and vacuum drying phases to deliver fast, effective sterilisation results. This process ensures thorough steam penetration and consistent drying performance, helping improve instrument turnaround times in busy clinical workflows.

High-Quality Imported Components
Built with premium international components, the system includes a German-engineered dry vacuum pump capable of achieving up to -0.90 bar, along with Italian solenoid valves and a high-quality water pump. These components work together to ensure reliable sterilisation performance and long-term durability.

Intelligent System Control
The autoclave features intelligent load detection, automatically adjusting time, water, and energy usage based on load size. This improves efficiency, reduces resource consumption, and ensures optimal sterilisation results for every cycle.

Advanced Safety Features
Designed with clinical safety in mind, the system includes automatic door locking, power outage protection, emergency stop functionality, and intelligent error detection. These features ensure safe operation and protect both users and instruments during every cycle.

Comprehensive Data Management
The G1 Series - G1 Max 46L stores up to 30,000 sterilisation records, allowing users to easily view, export, or reprint cycle data via USB. Records can be accessed directly on-screen by date, supporting compliance and simplifying audit processes.

Flexible Water and Printing Options
The system supports both internal water tanks and optional external water connection for greater convenience and reduced maintenance. It also supports optional external printers for cycle records and barcode label printing, improving traceability and workflow efficiency.

Engineered for Reliability and Performance
Additional features include 7 preset programs, 3 test programs, a 3-time pre-vacuum phase for improved air removal, manual locking, firmware upgrades via USB, and a patented independent stainless-steel steam generator designed to produce pure steam and protect delicate instruments.


Standards & Certifications

All Hatmed Autoclaves are listed on the ARTG and have Verified and Certified Pressure Vessels to meet Australian State WorkCover requirements.

 View full details

  • High Capacity Performance

    Designed to handle demanding loads with ease across multiple trays

  • Advanced Thermal Control (THERMOVIA™)

    Engineered for consistent heat distribution and reliable sterilisation results

  • Optimised Drying System

    Ensures efficient drying performance across a wide range of load types

  • Intuitive Display Interface

    Clear, user-friendly controls designed for everyday clinical use

  • Integrated Cycle Monitoring

    Track and verify sterilisation performance with confidence

  • Flexible Data Management

    Easily export and store cycle data for compliance and record keeping

  • Versatile Installation Options

    Designed to suit different setups with flexible configuration options

  • German Engineered Design

    Built with a focus on precision, durability, and performance

faqs G1 Series - G1 Max 46L

What is the difference between Hatmed P1, G1, and H1 series?

Hatmed autoclaves are structured into three main tiers:

  • P1 Series – Entry level, cost effective units designed for lower demand environments
  • G1 Series – Mid range with higher performance and broader clinical suitability
  • H1 Series – High performance and heavy duty units, including high speed and liquid ring models for demanding workloads

This tiering reflects performance, speed, and intended workload.

What is Hatmed known for in the market?

Hatmed is positioned as a value engineered alternative, offering:

  • Strong feature set for the price
  • Use of imported components in higher models, including German, Italian, and US sensors and valves
  • A broad range from basic to heavy duty

Do Hatmed autoclaves support record keeping and compliance?

Yes. Hatmed units support:

  • USB data export
  • Optional printers and barcode labelling
  • Cycle data storage

Do Hatmed autoclaves require an external water connection?

This depends on the unit:

  • Some models operate using internal tanks
  • Others can be connected to an external water supply for higher usage environments

Why would someone choose Hatmed over other brands?

Hatmed is often selected due to:

  • Lower capital cost
  • Strong feature set
  • Flexible configuration options

Do you have any autoclaves that can run liquid cycles?

Yes. The following models include a liquid cycle as standard:

  • H1 23L Q60B
  • G1 46L G1 Max (Q82B)
  • H1 55L Q92B

These cycles use controlled parameters to prevent liquids boiling over and ensure effective sterilisation.

What's the right Hatmed autoclave for me?

Choosing the right Hatmed autoclave mainly depends on how often you run cycles, how quickly you need instruments turned around, and how heavily your practice relies on sterilisation. As a general guide:

  • P1 Series – Lower cycle demand. If you expect to run up to around 10 cycles per week, a P1 unit may suit your needs. These units are best suited to lower-throughput environments where simplicity and cost-effectiveness are the priority.
  • G1 Series – Moderate clinical use. If you expect to run up to around 20 cycles per week, a G1 unit is generally the better choice. The G1 range offers faster performance and better day-to-day suitability for clinics with regular sterilisation requirements.
  • H1 Series – Heavy-duty or high-reliance use. If you are in dental, specialist clinical, or another industry where sterilisation is critical to daily workflow, especially where you run more than 20 cycles per week, the H1 series is the best fit. These units are designed for higher workloads, faster turnaround, and more demanding use environments.

Where does the G1 series sit in the range?

The G1 series is the mid range workhorse, offering:

  • Faster cycle times
  • Better suitability for clinical environments
  • Strong alignment with day to day practice use

What is the purpose of the 5L high speed unit?

The 5L high speed unit is designed for:

  • Rapid sterilisation of small loads
  • Quick instrument turnaround
  • Use as a supplementary unit rather than a sole steriliser

What is the advantage of the 46L unit?

The 46L unit provides:

  • Larger chamber capacity resulting in fewer cycles
  • Suitability for busier practices or multi room setups
  • Improved workflow efficiency
