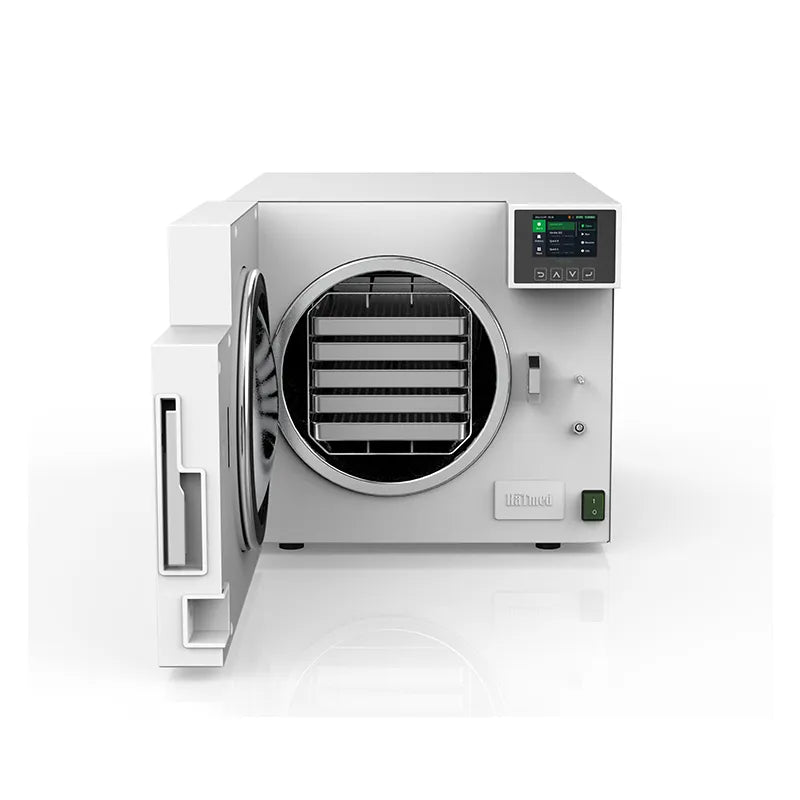

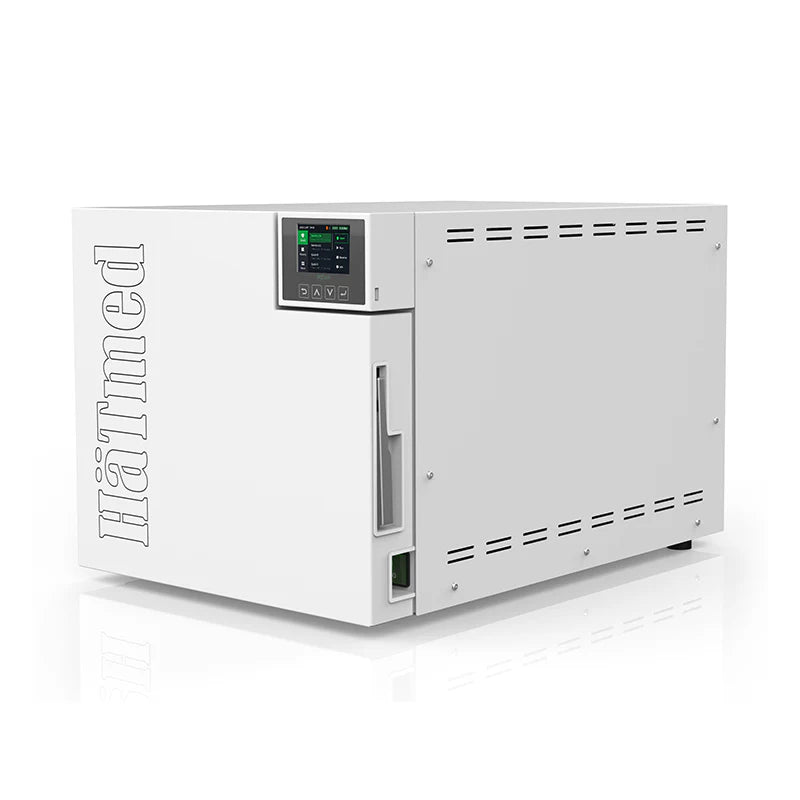

Hatmed H1 Series

H1 Series - Q60B 23L

23 Litre Dry Vacuum Air-Cooled High Speed Autoclave
B & S Class

SKU: HAM23PDX

MSRP: $9,999.00 ex GST



The H1 Series Q60B 23L is a high-performance, air-cooled Class B autoclave built for fast, reliable sterilisation in busy clinical environments. With shorter cycle times and powerful vacuum performance, it delivers consistent results across a wide range of instruments. Designed for medical, dental, veterinary and podiatry practices, it pairs speed and capacity with intelligent control for efficient daily operation.

Fastest B Class Cycle Time: 21 minutes
Fastest S Class Cycle Time: 15 minutes

Features

  • 30% Faster Cycle Performance - Delivers significantly faster sterilisation cycles compared to standard 23L air-cooled models, improving clinical efficiency.
  • Ultra-Fast Quick S Program - Processes a 1kg load in just 15 minutes (excluding drying), ideal for rapid turnover of frequently used instruments.
  • Advanced Vacuum Technology - German-engineered vacuum system achieves up to -0.92 bar for deep air removal and reliable sterilisation.
  • Superior Drying Performance - Produces saturated steam for maximum penetration, ensuring excellent drying results-even for textile loads.
  • Gentle on Instruments - Precise temperature and pressure control ensures even heating and helps protect delicate instruments.
  • Intelligent Load Detection - Automatically adjusts cycle time, water, and energy usage based on load size for improved efficiency.
  • Water Quality Monitoring System - Detects impurities and automatically stops cycles to protect instruments and equipment.
  • Flexible Program Options - Includes multiple preset, fast, custom, and test programs to suit a wide range of clinical needs.
  • High-Capacity Data Storage - Stores up to 30,000 sterilisation records with on-screen browsing, USB export, and optional printing.
  • Integrated Safety Systems - Includes door locking system, emergency stop, and power outage protection for safe operation.


What's in the Box

  • H1 Series - Q60B 23L- HAM23PDX
  • 1x Power Cable

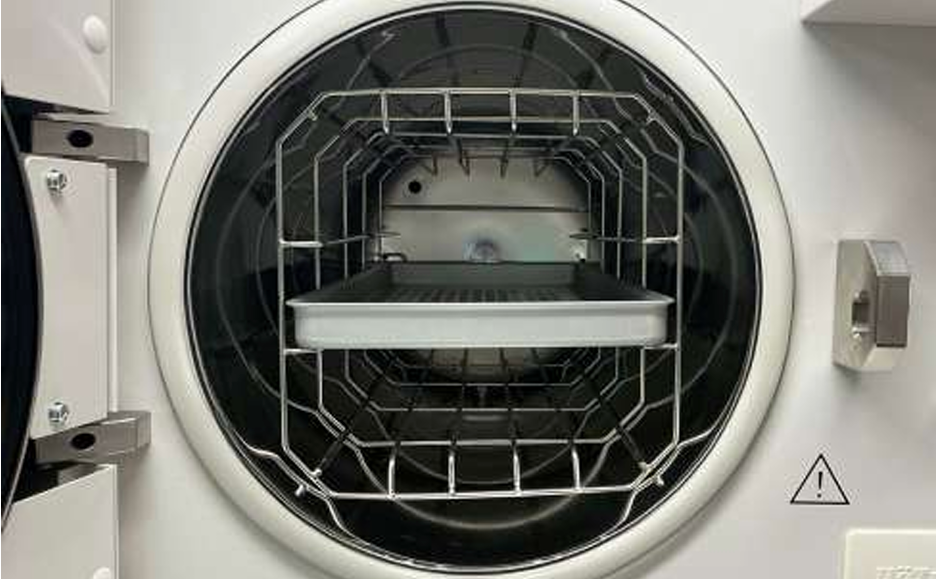

  • 5 x Trays
  • 1x Air filter
  • 1x Tray clamp


Specifications

Type
H1 Series - Q60B 23L - HAM23PDX
Volume
23L
Device Dimensions
655mm(D) x 455mm(W) x 480mm(H)
Chamber Dimensions
460mm (D) x 250mm (W)
Minimum Benchtop Dimensions
620mm(D) x 455mm(W)
Weight
70Kg
Power
15A (2500w) Australia power outlet
Display
2.4 Inch LCD Display
Data Interface
USB/RS232
Printer
External Printer (Optional)
External Case Material
Carbon Metal White Powder Coat Cover
Water Tank
External water tank
Door Opening
Electrical Safety Door
Vacuum Level
-0.92 Bar


Program Table

Program
Temp (°C)
Fastest Cycle Time (Min)
Typical Load
Gen 121
121
45
Textile load up to 2.5 kg or thermo-unstable instruments up to 7 kg.
Gen 134
134
31
Mixed load. Hollow instruments etc.
134+
134
-
Mixed load. Hollow instruments etc.
Quick S
134
15
Solid instruments, simple geared or hollow instruments.
Quick B
134
21
Wrapped instruments up to 4 kg or 7kg unwrapped solid instruments.


Shipping Info

Shipping Dimensions: 810mm(D) x 580mm(W) x 700mm(H)
Shipping Weight: 80Kg


Warranty

2 Years from the date of the invoice or 3000 cycles, whichever comes first. The customer must have a 12 month maintenance performed by an accredited service agent.


Downloads

Hatmed HA23PDX Q60B Brochure



Video




About the Product

The H1 Series - Q60B 23Lis designed for high-demand clinical environments requiring fast, efficient, and reliable sterilisation. With increased chamber capacity and accelerated cycle performance, it supports heavy daily workloads while maintaining consistent sterilisation quality across all instrument types.



Product Details

Fast & High-Volume Performance
Built for busy clinics, the H1 Series - Q60B 23L delivers rapid instrument turnover with significantly reduced cycle times. Its Quick S program completes a 1kg load in just 15 minutes (excluding drying), making it ideal for frequently used surgical, dental, and orthodontic instruments.

Advanced Vacuum Technology
Powered by a German-engineered vacuum system reaching up to -0.92 bar, the unit ensures effective air removal from hollow and porous instruments. This enables deep steam penetration and reliable sterilisation results across all load types.

Optimal Drying Results
The air-cooling system generates saturated steam for maximum penetration throughout the chamber, ensuring excellent drying performance-even for wrapped and textile-based loads.

Intelligent System Control
Intelligent load detection automatically adjusts time, water, and energy usage based on load size. This improves efficiency, reduces waste, and supports environmentally conscious clinical operation.

Flexible Sterilisation Programs
Multiple preset, fast, custom, and test programs allow the system to adapt to a wide range of clinical workflows. This ensures flexibility for both routine and specialised sterilisation requirements.

Reliable Safety & Monitoring
Built-in safety systems include a locking door mechanism, emergency stop, and power outage protection. The water quality monitoring system ensures consistent protection for both instruments and equipment.

Designed for Clinical Efficiency
With high-capacity record storage, USB export functionality, and optional printing, the H1 Series - Q60B 23L provides full traceability and streamlined workflow management for modern clinical environments.


Standards & Certifications

All Hatmed Autoclaves are listed on the ARTG and have Verified and Certified Pressure Vessels to meet Australian State WorkCover requirements.

 View full details

  • High Capacity Performance

    Designed to handle demanding loads with ease across multiple trays

  • Advanced Thermal Control (THERMOVIA™)

    Engineered for consistent heat distribution and reliable sterilisation results

  • Optimised Drying System

    Ensures efficient drying performance across a wide range of load types

  • Intuitive Display Interface

    Clear, user-friendly controls designed for everyday clinical use

  • Integrated Cycle Monitoring

    Track and verify sterilisation performance with confidence

  • Flexible Data Management

    Easily export and store cycle data for compliance and record keeping

  • Versatile Installation Options

    Designed to suit different setups with flexible configuration options

  • German Engineered Design

    Built with a focus on precision, durability, and performance

faqs H1 Series - 23L HS

What is the difference between Hatmed P1, G1, and H1 series?

Hatmed autoclaves are structured into three main tiers:

  • P1 Series – Entry level, cost effective units designed for lower demand environments
  • G1 Series – Mid range with higher performance and broader clinical suitability
  • H1 Series – High performance and heavy duty units, including high speed and liquid ring models for demanding workloads

This tiering reflects performance, speed, and intended workload.

What is Hatmed known for in the market?

Hatmed is positioned as a value engineered alternative, offering:

  • Strong feature set for the price
  • Use of imported components in higher models, including German, Italian, and US sensors and valves
  • A broad range from basic to heavy duty

Do Hatmed autoclaves support record keeping and compliance?

Yes. Hatmed units support:

  • USB data export
  • Optional printers and barcode labelling
  • Cycle data storage

Do Hatmed autoclaves require an external water connection?

This depends on the unit:

  • Some models operate using internal tanks
  • Others can be connected to an external water supply for higher usage environments

Why would someone choose Hatmed over other brands?

Hatmed is often selected due to:

  • Lower capital cost
  • Strong feature set
  • Flexible configuration options

Do you have any autoclaves that can run liquid cycles?

Yes. The following models include a liquid cycle as standard:

  • H1 23L Q60B
  • G1 46L G1 Max (Q82B)
  • H1 55L Q92B

These cycles use controlled parameters to prevent liquids boiling over and ensure effective sterilisation.

What's the right Hatmed autoclave for me?

Choosing the right Hatmed autoclave mainly depends on how often you run cycles, how quickly you need instruments turned around, and how heavily your practice relies on sterilisation. As a general guide:

  • P1 Series – Lower cycle demand. If you expect to run up to around 10 cycles per week, a P1 unit may suit your needs. These units are best suited to lower-throughput environments where simplicity and cost-effectiveness are the priority.
  • G1 Series – Moderate clinical use. If you expect to run up to around 20 cycles per week, a G1 unit is generally the better choice. The G1 range offers faster performance and better day-to-day suitability for clinics with regular sterilisation requirements.
  • H1 Series – Heavy-duty or high-reliance use. If you are in dental, specialist clinical, or another industry where sterilisation is critical to daily workflow, especially where you run more than 20 cycles per week, the H1 series is the best fit. These units are designed for higher workloads, faster turnaround, and more demanding use environments.

What makes the H1 series different?

The H1 range is performance focused and includes:

  • High speed cycle capability
  • Advanced vacuum systems
  • Liquid ring pump options

These models are designed for continuous, heavy duty use.
